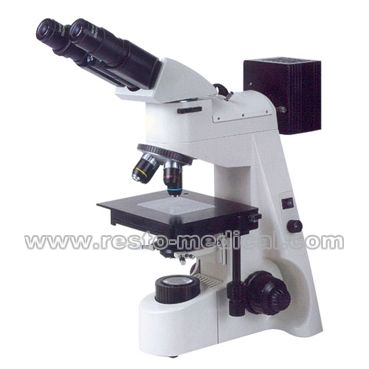

Up-right Metallurgical Microscope
| Specification | |
| Viewing head: | Compensation Free Binocular Head.Inclined at 30º(55-75mm) |
| Eyepiece: | WF10X/20mm |
| Nosepiece: | Quadruple nosepiece |
| Objective: | 195 metallurgical objectves:4X/0.1 W.D.25mm |
| 10X/0.25 W.D.11mm | |
| 20X/0.4 W.D.9mm | |
| 40X/0.6 W.D.3.8mm | |
| Stage: | Double layers mechanical stage |
| Stage size:180*150mm | |
| Moving range:75*50mm | |
| Focusing: | Coaxial coarse &fine focusing adjustment with rack and pinion mechanism |
| Fine focusing scale value 0.002mm | |
| IIIumination: | Epi-Kohler illumination. with aperture iris diaphragm and field iris diaphragm |
| Transmission light,12V/30W.AC 85-230V Adjustable brightness | |
| PolariZing outfit: | Analyxer rotatable 360º,polarizer & Analyzer can be slided in/out of the optical path |
| Filter: | Blue,green,yellow |
| Checking tool: | 0.01mm micrometer |
| Optional Accessory: | Eyepece:WF10X/20mm with reticule 0.1mm |
| Objective:50X/0.75W.D1.9mm 80X/0.9W.D.0.9mm | |
| 1.3or3.0 Mega pixels CMOS electronic eyepiece | |
| Photography attachmrnt | |
