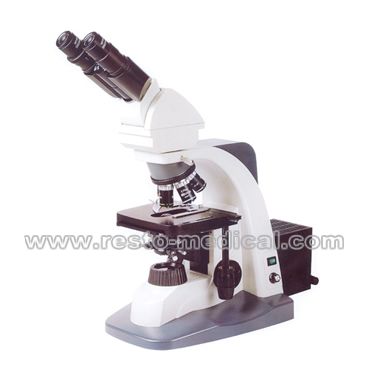

Research Biological Microscope
| Specification | |
| Viewing Head: | Compensation Free Binocular Head, Inclined adjustment 0º-40º |
| Interpupil Distance: | 55-75mm |
| Eyepiece: | WF10X/22mm |
| Nosepiece: | Quintuple nosepiece |
| Objective: | Infinity plan objectives:4X, 10X, 40X(s), 100X(S) Oil |
| Stage: | Double layers mechanical stage |
| Stage size:1800*160mm | |
| Moving range:75*50mm | |
| Condenser: | Swing type N.A.1.25 Abbe condenser with iris diaphragm & filter |
| Focusing: | Coaxial coarse & fine focusing adjustment with rack and pinion mechanism? |
| Fine focusing scale value 0.002mm | |
| Collector: | Kohler illumination |
| Lgtsource: | Halogen bulb 12V/30W 12V/50W or 12V/100W. AC 85-230V |
| Optional Accessory: | Viewing head:Compensation Free Trinocular Head, Inclined adjustment 0º-40º |
| Eyepiece:WF16X,WF20X,WF25X,P16X | |
| Nosepiece:Sextuple nosepiece | |
| Objective:Infinity plan objectives:20X(S).60X(s) | |
| Adjustable brightness | |
| Fluorescent attachment | |
| Phase contrast attachment | |
| Dry & lmmersion dark field condenser | |
| Simple polarization attachment | |
| 3.0 or 1.3 Mega pixel, CMOS electronic eyepiece | |
