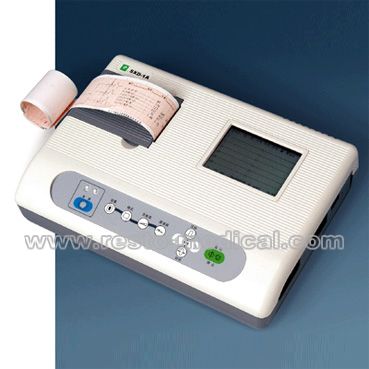

1 channel with LCD Screen ECG machine

Product Name: 1 channel with LCD Screen ECG machine
Model NO.: RT10402

Product Details: 1 channel with LCD Screen ECG machine

FEATURES:
synchronously acquisition of 12-lead ecg waveforms and auto
measureement printer report ;
320 x 240 lcd 12-leads ecg and operation menu display
store and print the ecg of eight patients ;
ac emg and dft filiers;
ac and dc power supply ,built -in rechargeable battery;
strily follpw iec60601-1 class i,type cf safety standard

SPECIFICATIONS:
lead: standard 12 leads; european leads
input circuit:floating,protection against defibillator effect
calibrating:1mv± 2%
sensitivity:auto,5 10 20mm/mv
recording system: thermal-array
apeed:25, 50mm/s
rafety:standard iec class i ,type cf
power supply ac :220v (110v),50hz/60hz,30va
dc :12v-1500mah ni-mh
dimensions: 290 mm x 205mm x 65mm
net weight: 2.1kg
