Detailed Product Description

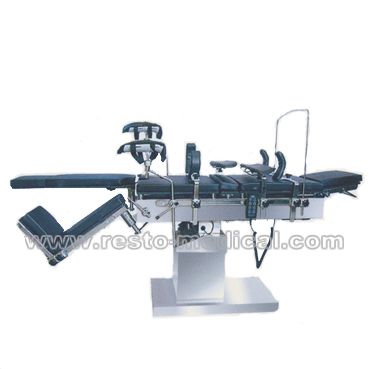

Electric Operating Table

RT50201 Electric Operating Table is designed for all operations in hospitals. Besides all functions of the domestic products. it has its own advantages:
1.Leg section can be rotated, opened, disassembled and adjusted easily. It is most adapt to the urological operation.
2.The table top, made of high strength plastic, can move backwards and forwards. X-ray examination can be carried out on it.
3.With 24V direct supply, the table is safe and reliable. The table's elevation, lowering, reversed trendelenburg; trendelenburg, lateral tilt are all automatically controlled by the Button.
4.This table can be configured with different kinds of table tops for different use.
Electric Operating Table is one of the most advaced operating table with excellent functions in China. Available for the Model C arm.
The back section and leg section of Model 99A is equipped with the barometric pressure spring.

Specifications
Length:2100mm
Width:480mm
Max Height:1000mm
Min Height:750mm

Main Technical Parameters
Reversed Trendelenburg:≥25°
Trendelenburg:≥25°
Lateral Tilt:≥15°
Backward and Forward Movement:≥400mm
Head Section Raised from the Horizontal:≥45°
Head Section Lowered from the Horizontal:≥45°
Supply: AC 200V±10% 50HZ
Leg section Lowered from the Horizontal:≥90°
Leg section Opened:≥90°
Kidney Bridge Elevation:≥60mm
